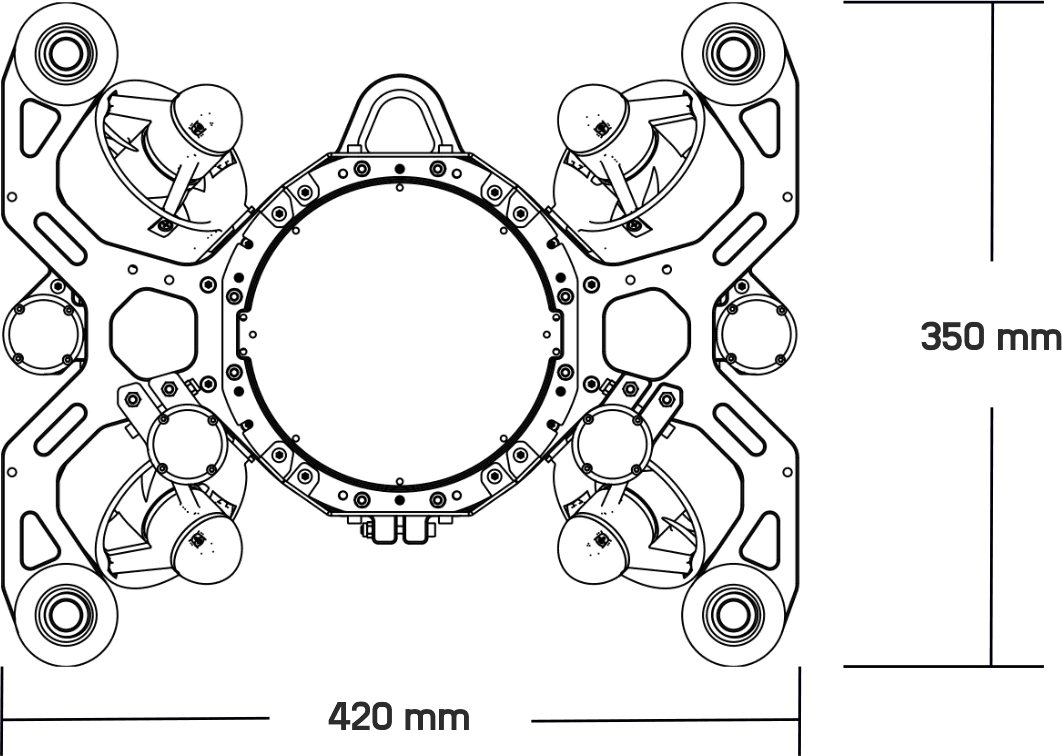

front

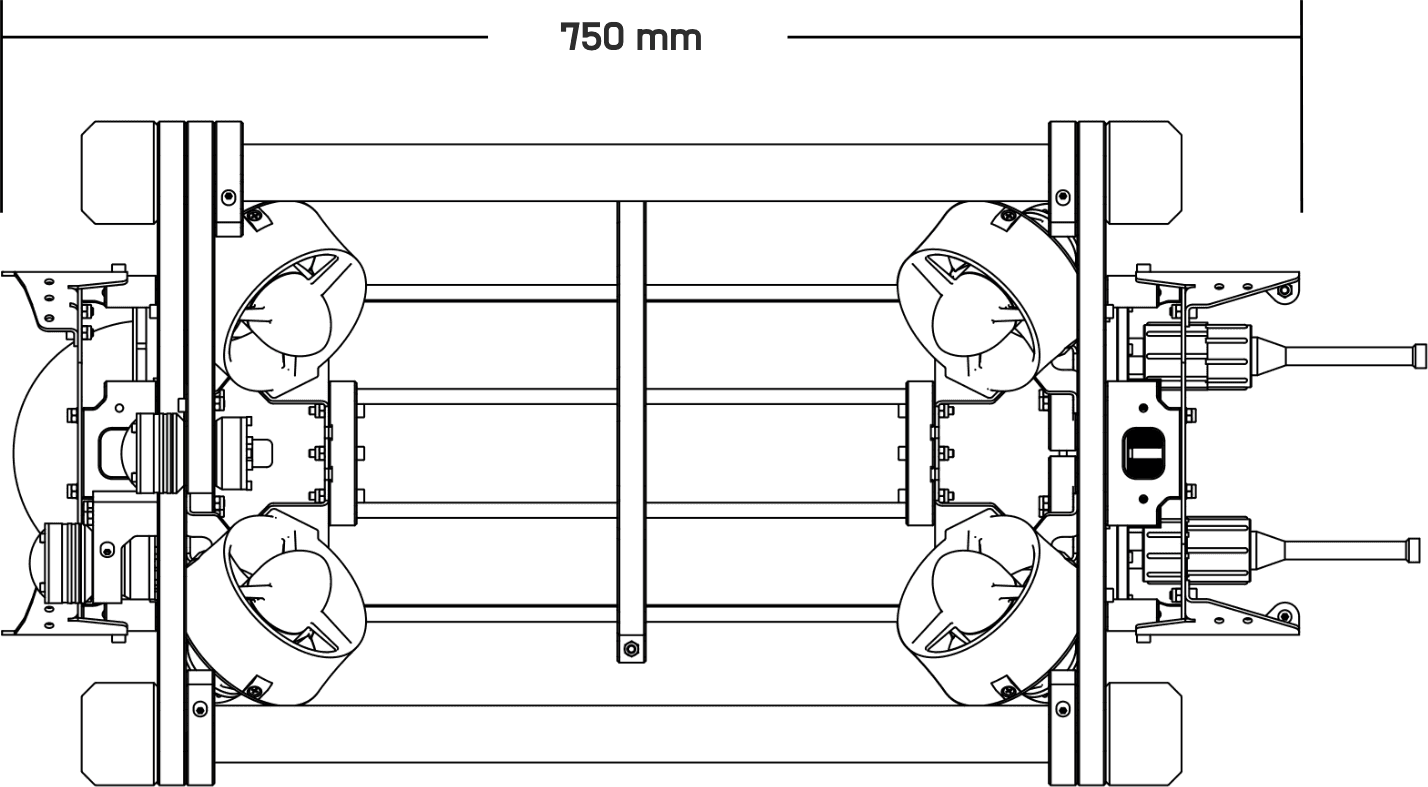

side

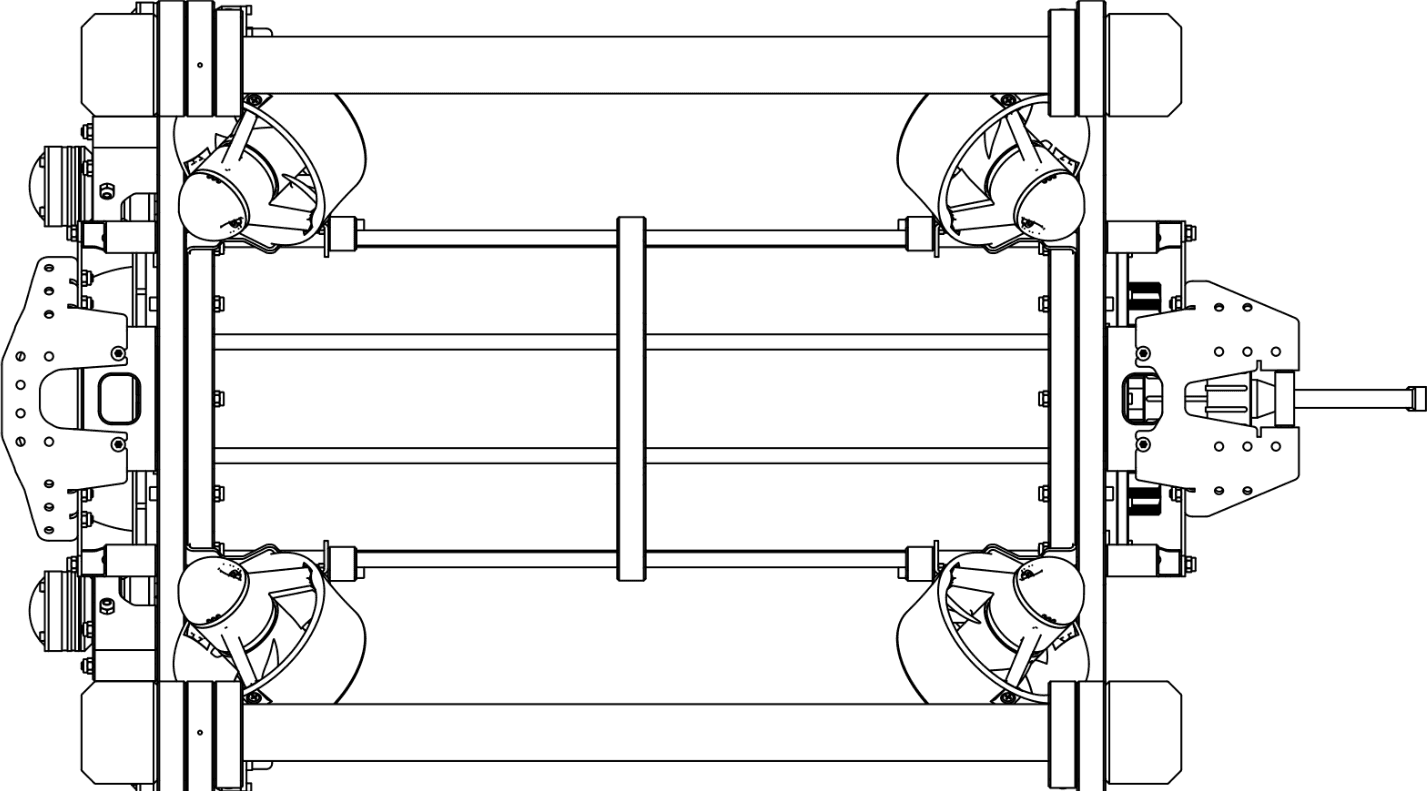

TOP
technical sPECIFICATIONS
General Details
Type
Observation class ROV
Depth Rating
300 meters (1604 feet)
Weight
35 kg in air (fully loaded)
Dimensions
750mm x 420mm x 350mm
(l x b x h)
Power Supply
220 VAC, 50/60 Hz (Surface Power
Supply), Onboard battery
Operating Temperature
Range
-5°C to +40°C (23°F to 104°F)
Camera and Imaging Systems
Primary Camera
4K Ultra HD Color Camera
Pan/Tilt/Zoom
360° pan, ±90° tilt, 30x optical zoom
Lighting
Integrated LED lights with variable intensity,
up to 6,000 lumens
Additional Cameras
Secondary 1080p HD camera
Additional Sensors
Low-light monochrome camera for operation in low visibility. Optional BlueView multibeam sonar for highdefinition imaging and obstacle detection
Sensors and Instrumentation
Depth Sensor
High-precision depth sensor (accuracy
± 0.05 meters)
Gyroscope
3-axis gyro for precise attitude stabilization
Accelerometer
3-axis accelerometer for motion detection
Compass
MEMS-based digital compass with
auto-calibration
Additional Sensors
DVL, CTD, Altimeter etc.
Vehicle Performance
Max Speed
10 knots
Thrust
25 kgf (55 lbsf)
Buoyancy
Neutral in sea water
Manoeuvrability
6 Degrees of Freedom
Payload Capacity
10 kg (22 lbs)
Endurance
8 hrs of dive time
Manipulator Arms (Optional)
Type
5-function electric manipulator arm
Degrees of Freedom:
5 DOF per arm
Lift Capacity
8 kg (17.6 lbs) per arm
Tether and Control System
Tether Length
600 meters (1,969 feet)
Tether Type
Fiber-optic hybrid with Kevlar reinforcement
for durability
Tether Management
System
Integrated automatic TMS with tension
control and auto-spooling
Control Console
Display
24-inch HD touchscreen
Joystick
Dual-axis joystick
User Interface
Customizable GUI with real-time telemetry,video feeds and sensor data display
Data Transmission
Real-time video and sensor data via fiberoptic link with data logging and recodring
APPLICATIONS
cinematography
Coverage & broadcast
Aquatic sports
ISR operations
Stroke analysis
ISR operations

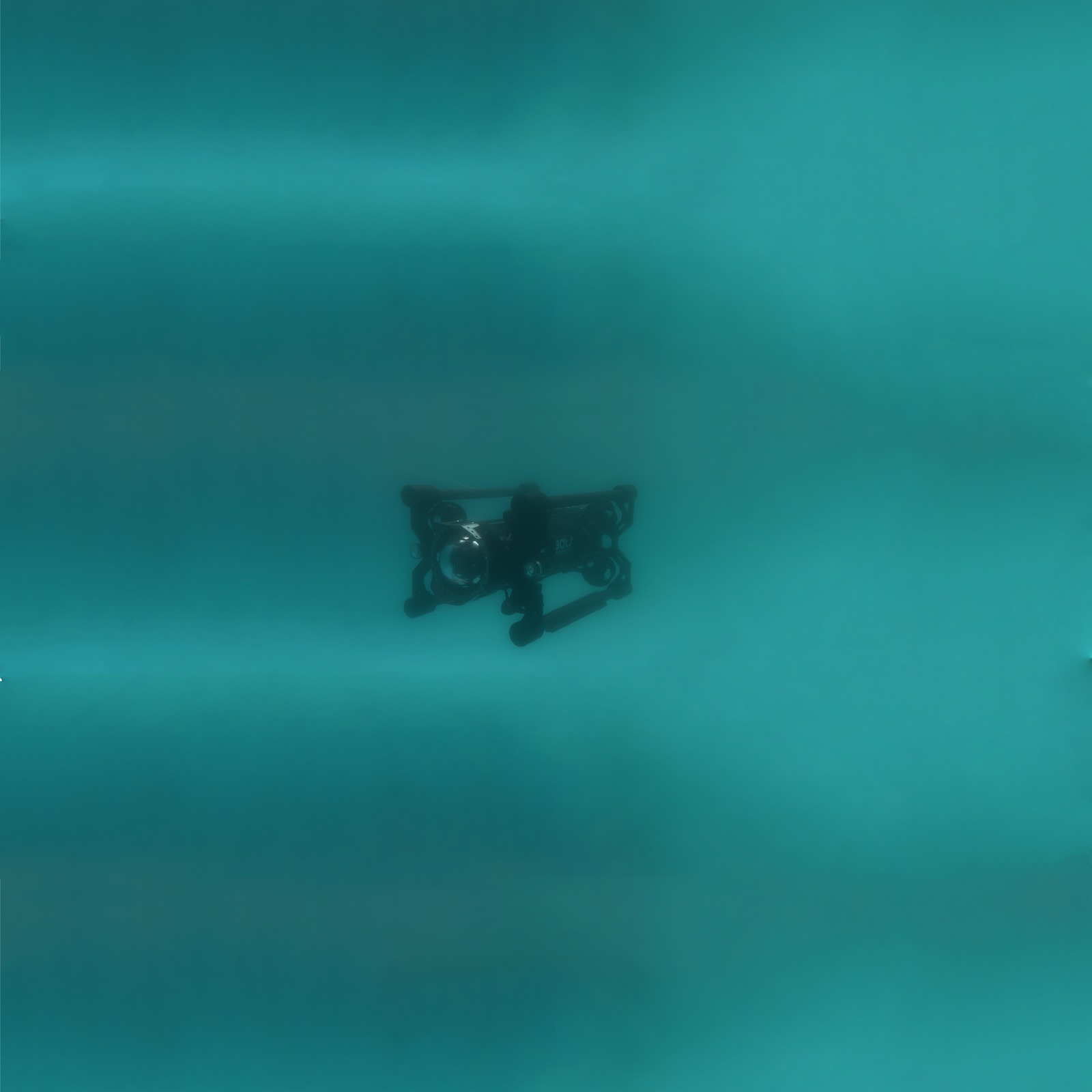

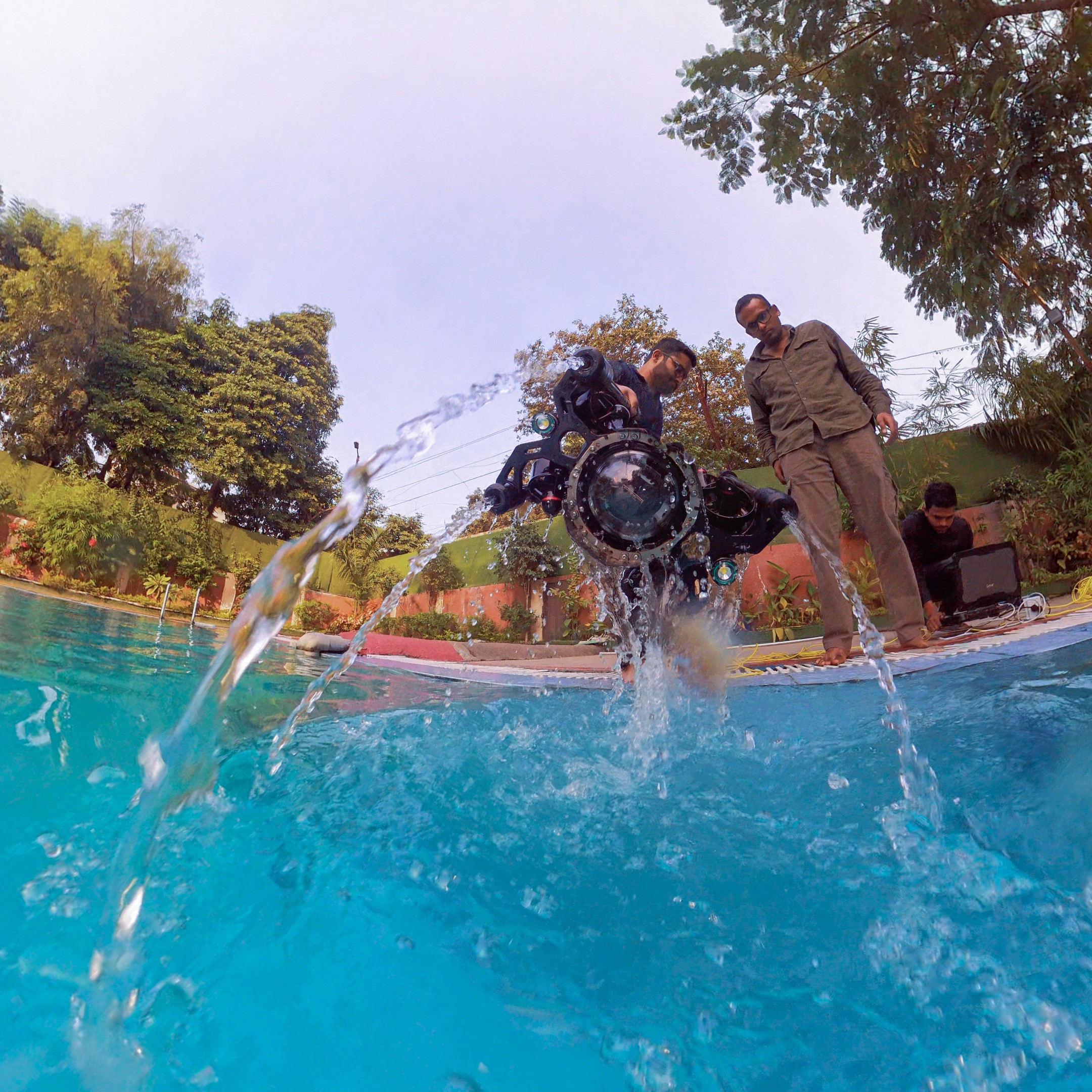

GALLERY
